    This article applies only to Backup4all. If you don't have it yet, you must download it first.

    Download now Buy licenses
    Sep 11, 2019
    Backup4all 4.x - 8.x
    We strive to keep our articles as accurate as possible. If you notice any inconsistencies or outdated info please let us know.
    On the Compression page, you can set different compression levels for backup and you can also configure the compression and encryption settings. This page can be accessed if you go to Backup Properties -> Compression.

    On this page:

    Zip Compression

    Level
    You can set different compression levels for the backup:
    • Zip without compression (Fastest) - files are just copied inside the zip archive, without any compression
    • Low compression (Fast) - select this option if the size of the zip archive is not important, but the speed of the backup is
    • Normal compression (Medium) - this is usually the best choice because it provides the optimum rate between zip archive size and the backup speed
    • Best compression (Slow) - use this compression level to reduce the zip archive size as much as possible (the backup speed is reduced)
    Use No compression or Low compression if you backup large files, to speed up the backup process. Use High compression when you want to create the smallest archive possible. This option takes more time if the files included in archive are large.

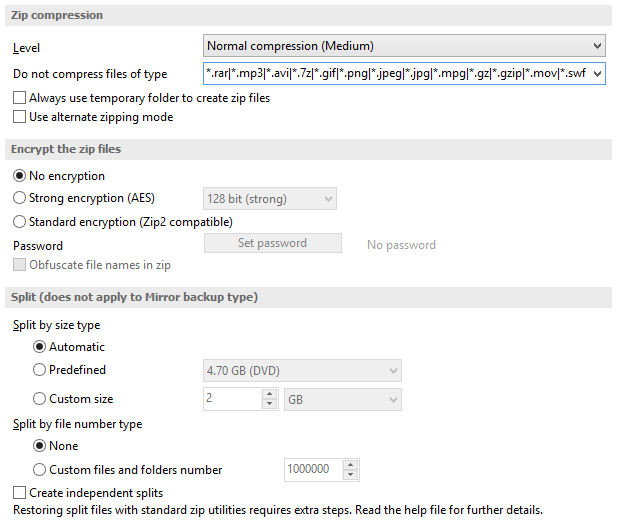

    backup properties - compression
    Do not compress files of type
    The filter can be applied to increase the compression performance. It defines what types of files to be stored uncompressed in the zip file. These are files that are already compressed (e.g. zip, rar, mp3 or avi) and using the zip compression on them wouldn't result in a smaller sized backup. You can use the already defined file types or you can add others using the Default compression filter list in "File -> Options -> Backup". The result will be that the backup will take less time when using compression.
    Always use temporary folder to create zip files
    If checked, the zip files are created in the temporary folder and then moved to the destination folder. This means that there should be enough free disk space on the drive where the temporary folder is located.
    When backing up to removable media (CD, DVD or Blu-ray disc, floppy, zip disk, etc.) this option is ignored, the zip files are always created in the temporary folder and then copied to the destination. When backing up to internal hard drives or LAN, you should uncheck this option to speed up the backup execution. By default this option is not checked.
    Use alternate zipping mode
    If not checked (default zipping mode), each file is compressed in blocks that are immediately added to the final zip file. If checked (alternate zipping mode), each file is compressed in blocks in a temporary file. When the whole file is compressed in the temporary file, it is added to the final zip file.
    This option has effect only when backing up to internal hard drives and LAN. In all other cases this option is ignored. When backing up to LAN drives, it is recommended to check this option and uncheck Always use temporary folder to create zip files option. When backing up to internal hard drives, it is recommended to uncheck both options. By default this option is not checked.

    Encrypt the zip files

    No encryption
    The zip files created are not protected by password for unauthorized access.
    Strong encryption (AES)
    This is the Advanced Encryption Standard, the best choice in zip protection, but recognized only by the latest version of third party zip applications.
    Backup4all supports AES encryption in three different strengths:
    • 128 bit (strong) - size of the encryption key is 128 bits. This provides significantly better security than standard zip 2.0 encryption.
    • 192 bit (stronger) - size of the encryption key is 192 bits
    • 256 bit (strongest) - size of the encryption key is 256 bits. This is the strongest encryption method for zip files and it provides the best security.
    Standard encryption (Zip2 compatible)
    This is the standard Zip 2.0 encryption: an older encryption technique that provides relatively weak security compared to AES encryption. Zip 2.0 encryption format cannot provide protection from individuals with access to specialized password recovery tools. Its advantage over AES encryption is the compatibility with all third party zip applications.
    Set password
    After you press this button, a windows with the following fields will appear:
    • New password: manually enter the password you want to use for your zip files in this field
    • Confirm new password: re-enter the password in this field to avoid typing errors.
    • Old password
    This field is enabled only when the backup job already has a password.
    You can change the password only if you enter the old one in this field. This way only the owner of the backup will be allowed to change the password.
    The system makes it possible to set different passwords for the same backup job, so the backup may contain zip files with different passwords.
    Tips:
    • when choosing a password, it is recommended that you use a combination of letters and numbers and at least 8 characters.
    • make sure that you remember all passwords that have been used for a backup job, or you will not be able to restore your files.

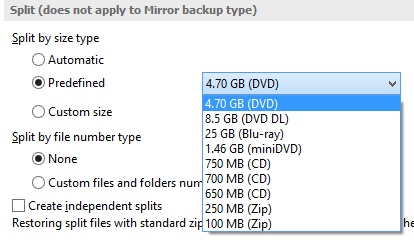

    Split (does not apply to Mirror backup type)

    Split by size type
    • Automatic
      This is the default split option, meaning that the size of the zip is limited to the maximum file size allowed by the file system.
    • Predefined
      The predefined values are provided for floppy disks, zip disks and different CD media types.
      backup properties - compression
    • Custom size
      Sometimes these predefined values are not enough. Therefore you can select Custom size in the combo and specify the maximum archive size you want. The minimum span size is 512 kilobytes. The value in the Size field means that each span should not exceed this value. However, because of the zip algorithm limitation, the system might create spans with size up to 32-64 kilobytes smaller than this value.
    Split by file number type
    • None
      The split by file number option is disabled
    • Custom files and folders number
      Specify the maximum number of files and folders to be included in a zip file. This option is useful if the application is using a lot of computer memory
    Create independent splits
    Using this option, each backup split can be independently restored.
    If you have a large backup that spans over several removable media (CD/DVD/Blu-ray, floppy) each spanned backup can be independently restored. Thus, if one of the spanned backup disks is corrupted you can still restore the other files.
    Example: you have a backup that was spanned over 20 CDs, and you didn't leave the Create independent splits option checked. If you need to do a restore and one of the zip files is damaged, you lose all the data from the 20 CDs. Now, if the Create independent splits would have been checked, even if one zip file would have been damaged, the data from the other 19 could have been recovered.
    Each zip file created with Backup4all can be extracted with standard zip utilities. However, when using the Create Independent Splits option and backing up a file big enough to be split into more than one zip file, you will need to perform an additional operation if you want to restore that file manually (without using Backup4all).
